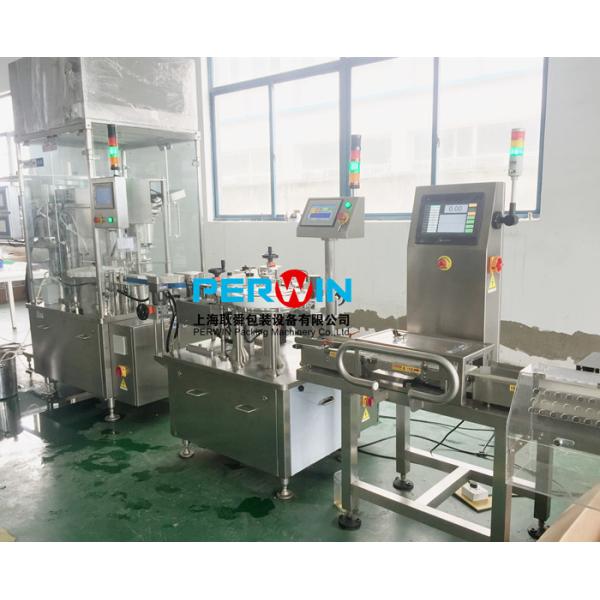

PW-HGX210 Filling And Capping Machine Blood Collecting Small Tube

The line was designed by our own company with automatic tube unscrambler, filling and capping, labeling and automatic weighing machine. This production line stable running speed is around 20 ~30 bottles/min.

It is specially designed for 0.5~10ml tube bottles.

The features of production line

• This machine layout is smart and compact which also adopted humanized design in terms of operating habits.

• The operation interface is made of colorful LCD touch screen, and the whole machine system is controlled by PLC.

• Precise CAM technology to take the cap for capping. The capping unit adopts servo technology to control the capping force. By changing the servo drive output parameters to change the rotate speed,ensures the torque of the screw cap is relatively constant. And the quantitative setting ,quantitative control are made to ensure that the cap is screwed properly on the bottles, and the torque of the cap is reliable and stable.

• With the equipment operation monitoring function. The operation condition of the main parts of the machine has a dynamic display on the HMI, which makes the operation state of the machine clear at a glance, easy to operate and maintain. When the machine is in a state of alarm, in addition to the sound and light alarm, the dynamic display alarm position and cause can be displayed on the HMI.

• The whole line is made of intelligent control, the upstream and downstream stations running are with interlocking control function.

• Most parts are made of stainless steel SUS 304#, aluminum alloy material, etc. and the filling needle made of 316L material(can be plastic if customer need), in line with the pharmaceutical enterprises GMP requirements and other industry products packaging requirements.

• 100 purification laminar flow hood against GMP requirements (This is for your optional).

The main parameters
